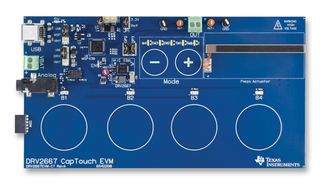

The DRV2667EVM-CT Evaluation Module kit is a complete demo and evaluation platform for the DRV2667. The DRV2667 is a digital interface, high-voltage driver designed to control Piezo actuators with voltages. The DRV2667 eliminates many design complexities of driving Piezo by including an integrated 100-Vpp boost converter and 200-Vpp differential output amplifier. In addition, the digital control interface includes real-time waveform playback, a waveform generator, and embedded RAM for waveform storage.
- Integrated Digital Front-End (I2C)
- Integrated Boost Converter
- Piezo Actuator
- Capacitive Touch Buttons
- Programmable MSP430
- Fast start up time of 2ms
- Wide supply voltage range of 3V to 5.5V
- 1.8V compatible, VDD tolerant digital pins
