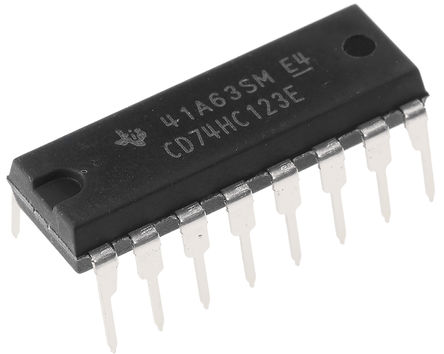

The CD74HC123E is a high speed CMOS logic dual retriggerable Monostable Multivibrator with reset. It is all retriggerable and differ only in that the 123 types can be triggered by a negative to positive reset pulse, whereas the 423 types do not have this feature. An external resistor (RX) and an external capacitor (CX) control the timing and the accuracy for the circuit. Adjustment of Rx and CX provides a wide range of output pulse widths from the Q and Q\ terminals. Pulse triggering on the A\ and B inputs occur at a particular voltage level and is not related to the rise and fall times of the trigger pulses. Once triggered, the output pulse width may be extended by retriggering inputs A\ and B. The output pulse can be terminated by a LOW level on the Reset (R) pin. Trailing edge triggering (A)\ and leading edge triggering (B) inputs are provided for triggering from either edge of the input pulse.
Overriding reset terminates output pulse
Triggering from the leading or trailing edge
Q and Q\ buffered outputs
Separate resets
Wide range of output-pulse widths
Schmitt trigger on both A\ and B inputs
Balanced propagation delay and transition times
Significant power reduction compared to LSTTL logic ICs
