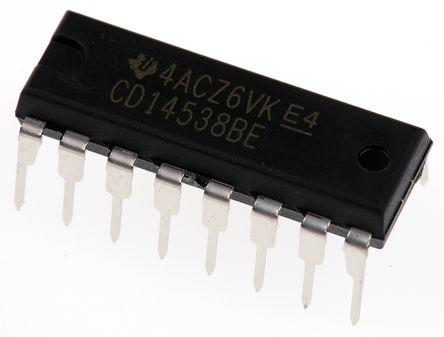

The CD14538BE is a dual precision mono-stable Multi-vibrator IC provides stable retriggerable/resettable one-shot operation for any fixed-voltage timing application. An external resistor (RX) and an external capacitor (CX) control the timing and accuracy for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q/ terminals. The time delay from trigger input to output transition (trigger propagation delay) and the time delay from reset input to output transition (reset propagation delay) are independent of RX and CX. Precision control of output pulse widths is achieved through linear CMOS techniques.
Retriggerable/Resettable Capability
Trigger and Reset Propagation Delays Independent of RX and CX
Triggering from Leading or Trailing Edge
Q and Q/ Buffered Outputs Available
Separate Resets
Replaces CD4538B Type
Wide Range of Output-pulse Widths
Schmitt-trigger Input Allows Unlimited Rise and Fall Times On +TR and -TR Inputs
100% Tested for Maximum Quiescent Current at 20V
Maximum Input Current of 1μA at 18V Over Full Package-temperature Range, 100nA at 18V and 25°C
1V at VDD-5V, 2V at VDD-10V, 2.5V at VDD-15V Noise Margin (Full Package-temperature Range)
