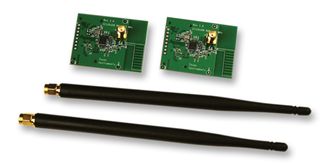

The CC1200EMK-868-930 evaluation module kit for 868MHz to 930MHz can be used in conjunction with the CC1200 development kit to evaluate the operation of the CC1200 in the mentioned frequency range. The CC1200 is a fully integrated single chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. All filters are integrated, removing the need for costly external SAW and IF filters. The device is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD frequency bands at 164MHz to 190MHz, 410MHz to 475MHz and 820MHz to 950MHz. The CC1200 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication and wake on Radio. The CC1200 main operating parameters can be controlled via an SPI interface. In a typical system, the CC1200 will be used together with a microcontroller and only few external passive components.
- Dedicated packet handling for 802.15.4g
- Improved OOK shaping for less occupied bandwidth
- Digital RSSI measurement
- Built in coding gain support for increased range and robustness
- Advanced digital signal processing for improved sync detect performance
- High performance single chip transceiver
- Programmable output power up to 16dBm with 0.4dB step size
- Automatic output power ramping
- 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, MSK, OOK supported modulation formats
- Hardware AES128 accelerator
