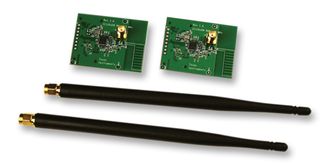

CC1200EMK-420-470 -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

CC1200EMK-420-470

仓库库存编号：

2345427

技术数据表：



The CC1200EMK-420-470 evaluation module kit for 420MHz to 470MHz, can be used in conjunction with the CC1200 development Kit to evaluate the operation of the CC1200 in the mentioned frequency range. The CC1200 is a fully integrated single chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. All filters are integrated, removing the need for costly external SAW and IF filters. The device is mainly intended for the Industrial, Scientific and Medical and short range device frequency bands at 164MHz to 190MHz, 410MHz to 475MHz and 820MHz to 950MHz. The CC1200 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication and Wake On Radio. The CC1200 main operating parameters can be controlled via an SPI interface. In a typical system, the CC1200 will be used together with a microcontroller and only few external passive components.

• High performance single chip transceiver
• Excellent receiver sensitivity
• Blocking performance: 86dB at 10MHz
• Adjacent channel selectivity: up to 60dB at 12.5KHz offset
• Programmable output power up to 16dBm with 0.4dB step size
• Supports up to 1.25Mbps data rate in transmit and receive
• Advanced digital signal processing for improved sync detect performance
• Support for seamless integration with the CC1190
• Digital RSSI measurement
• Built in coding gain support for increased range and robustness
