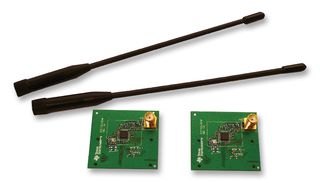

CC1121EMK-868-915 -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

CC1121EMK-868-915

仓库库存编号：

2356504

技术数据表：



The CC1121EMK-868-915 is a 868MHz to 915MHz evaluation module kit for CC1121 RF transceiver. The CC1121 is a fully integrated single chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. All filters are integrated, thus removing the need for costly external SAW and IF filters. The device is mainly intended for the ISM and SRD frequency bands at 274MHz to 320MHz, 410MHz to 480MHz and 820MHz t0 960MHz. The CC1121 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake on radio. The main operating parameters of the CC1121 device can be controlled through an SPI interface. This kit can be used in conjunction with the CC1120 development kit to evaluate the operation of the performance line RF IC at 868MHz to 915MHz particular frequency bands. The CC1120DK is required for operation and needs to be ordered separately.

• High performance, single chip transceiver
• Wide supply voltage range from 2.0V to 3.6V
• Low current consumption
• Programmable output power up to +16dBm with 0.4dB step size
• Automatic output power ramping
• Configurable data rates of 1.2Kbps to 200Kbps
• FSK, 2 GFSK, 4 FSK, 4 GFSK, MSK, OOK modulation formats
• Excellent receiver sensitivity
• Blocking performance of 86dB at 10MHz
• Adjacent channel selectivity of 60dB
