CC1101DK433 -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

CC1101DK433

仓库库存编号：

2334582

技术数据表：

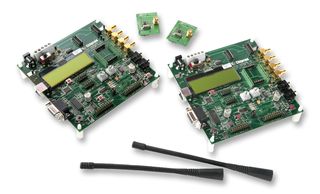

The CC1101DK433 development kit is designed to evaluate the SmartRF04 products with this the user can do range testing (PER testing) and transfer data from one PC to another using the SmartRF04DK. And perform RF measurements. Using SmartRF Studio, the user can configure the radio ICs with parameters that suit the intended application and easily measure sensitivity, output power and other RF parameters. And also develop prototype. The SmartRF04DK includes a Silicon Labs 8051 core MCU with 16kB of program memory and 1kB of data memory. By programming this MCU and utilizing the various peripherals included on the evaluation board, the user can easily make a prototype of the intended application. All signals are brought out on 0.1inch pin row connectors so easy connection of other required circuitry is possible. These connectors are also compatible with Keysight logic analyser probes for easy debugging.

• The RF section is designed for operation in the 433MHz frequency bands
• Suitable for frequency hopping systems due to a fast settling frequency synthesizer
• Flexible support for packet oriented systems
• Support for automatic Clear Channel Assessment (CCA) before transmitting
• For prototype development MCU can be selected by the user to the I/O connectors
