BQ500211EVM-045 -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

BQ500211EVM-045

仓库库存编号：

2378941

技术数据表：

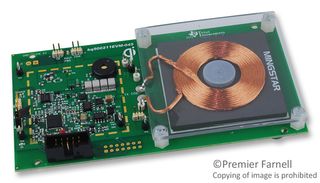

The BQ500211EVM-045 is an evaluation module for BQ500211 device. The BQ500211 is a second generation digital wireless power controller that integrates all functions required to control wireless power transfer to a single WPC compliant receiver. The bqTESLA wireless power transmitter evaluation module from is a high performance, easy to use development module for the design of wireless power solutions. The single channel transmitter enables designers to speed the development of their end applications. The BQ500211EVM-045 evaluation module (EVM) provides all basic functions of a Qi compliant, wireless charger pad. The EVM is intended to be used with bq51013AEVM-764, -765 or any other Qi compliant receiver. The transmitter EVM is a 5V input design which powers a standard WPC low power 5W receiver.

• Supports wireless power solutions operating from 5V input
• Intelligent control of the power transfer between base station and mobile device
• Conforms to the wireless power consortium (WPC) wireless power transfer 1.0 specifications
• Demodulates and decodes WPC complaint message packets from the power receiving device
• Implements closed loop power transfer PID control by varying frequency of voltage
• LED indicates power transfer or power fault state
• Audio indication of start of power transfer though a board mounted buzzer
• Transmitter coil mounting pad providing the correct receiver interface
