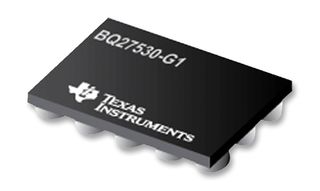

The BQ27530YZFT-G1 is a system-side Li-ion Battery Management Unit provides Impedance Track? fuel gauging and charging control for single-cell Li-ion battery packs. The device requires little system microcontroller firmware development. Together with bq2416x Single-Cell Switchmode Charger, the BQ27530-G1 manages an embedded battery (non-removable) or a removable battery pack. It uses the patented Impedance Track? algorithm for fuel gauging and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min), battery voltage (mV), temperature (°C) and state of health (%).
- Resides on system main board
- Charger control based on SoH
- Temperature level charging (TLC)
- Stand-alone charging solution
- Configurable charge voltage and current based on temperature
- Improved recharged thresholds
- Tighter accuracy controls for charger termination
- Higher safety and security
- Green product and no Sb/Br
通信与网络, 音频, 成像, 视频和目视, 便携式器材, 消费电子产品
