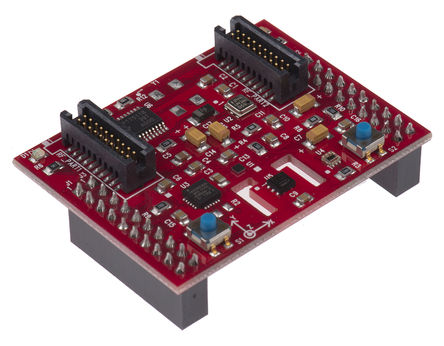

BOOSTXL-SENSHUB是一个低成本扩展板, 用于Tiva? C系列TM4C LaunchPad EK-TM4C123GXL评估平台, 用于ARM? Cortex?-M4F微控制器. 此传感器集线器可使用户创建和创新原型模型, 利用TM4C123GH6PM微控制器的处理和浮点功能, 并有运动和环境传感器. 此传感器集线器扩充包插入至位于LaunchPad顶部的Booster Pack XL针座.
- 一个用户LED
- 一个功率LED
- EM连接器用于附加无线扩展
- 9轴InvenSense MPU9150运动传感器
- TMP006 non contact infrared temperature sensor
- Two pairs of 10pin headers provide standard LaunchPad interface
- Primary header (outer row) compatible with other MCU LaunchPads
- Secondary header (inner row) offers additional Tiva C series based expansion signals
- Two user input buttons and LEDs
- wireless evaluation module (EM) interface connection
