BOOSTXL-C2KLED -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

BOOSTXL-C2KLED

仓库库存编号：

2148659

技术数据表：

(EN)

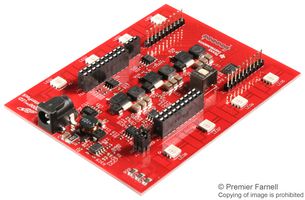

The BOOSTXL-C2KLED is an add on board designed to fit the C2000 LaunchPad and the other 40 pin based LaunchPads. The C2000 LED BoosterPack demonstrates the control of three boost converters to drive three LED (Red, Green, and Blue) strings. A variety of user interface options are provided included capacitive touch control using an MSP430 and the MSP430 Cap Touch BoosterPack (430BOOST-SENSE1) as well as a PC GUI application. This boosterpack is ideal for those wishing to learn about real time digital control techniques and LED lighting. This kit requires a C2000 LaunchPad to function as intended. This BoosterPack provides users with a way to accurately control a series of LED strings while efficiently controlling the power stages needed to make the LEDs work.

• LED BoosterPack is an add on board designed to fit the C2000 LaunchPad
• Controls the three boost converters to drive three LED
• Includes capacitive touch control using an MSP430 and the MSP430 Cap Touch BoosterPack
• LED lighting project allows C2000 launchpad users to plug launchpad into LED lighting boosterpack
• Features a variety of user interface options
