AM26LV32CD -

Differential Receiver RS422, 3V-3.6V Supply, SOIC-16

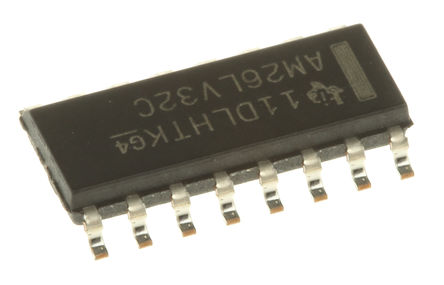

TEXAS INSTRUMENTS AM26LV32CD
声明:图片仅供参考,请以实物为准!
制造商产品编号:
AM26LV32CD
仓库库存编号:
1652268
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

AM26LV32CD产品概述

The AM26LV32CD is a quadruple low-voltage high-speed differential Line Receiver with 3-state outputs. It is designed to be similar to TIA/EIA-422-B and ITU recommendation V.11 receiver with reduced common-mode voltage range due to reduced supply voltage. The device is optimized for balanced bus transmission at switching rate up to 32MHz. The enable function is common to all four receivers and offers a choice of active-high or active-low inputs. The 3-state outputs permit connection directly to a bus-organized system. Each device features receiver high input impedance and input hysteresis for increased noise immunity and input sensitivity of ±200mV over a common-mode input voltage range from -0.3 to 5.5V. When the inputs are open circuited, the outputs are in the high logic state. This device is designed using the Texas Instruments (TI?) proprietary LinIMPACT-C60? technology, facilitating ultra-low power consumption without sacrificing speed.
  • Open-circuit, short-circuit and terminated failsafe
  • Accepts 5V logic inputs with 3.3V VCC
  • Pin-to-Pin-compatible with AM26C32, AM26LS32 and MB570
  • 27mW Typical ultra-low power dissipation
  • -0.3 to 5.5V Common-mode range with ±200mV sensitivity
  • 50mV Typical input hysteresis
  • 235mW with four receivers at 32MHz
  • Green product and no Sb/Br

信号处理

AM26LV32CD产品信息

  芯片接口类型  RS422
  驱动器数  -
  封装  每个
  产品范围  -
  MSL  MSL 1 -无限制
关键词
电话:400-900-3095
QQ:800152669

AM26LV32CD产地与重量

原产地:
Malaysia

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85423990
重量(千克):
.000363
