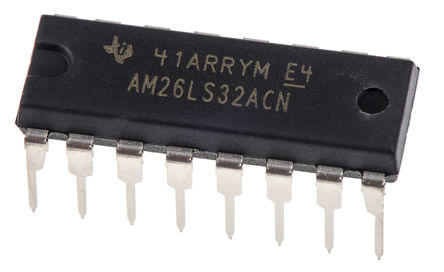

AM26LS32ACN -

差分接收器, RS422/RS423, 4.75V-5.25V电源, DIP-16

声明：图片仅供参考，请以实物为准！

制造商：: TEXAS INSTRUMENTS TEXAS INSTRUMENTS
制造商产品编号：: AM26LS32ACN
仓库库存编号：: 1103046
技术数据表：: (EN)

订购热线： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

AM26LS32ACN产品概述

The AM26LS32ACN is a quadruple differential Line Receiver for balanced or unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design specifies that if the inputs are open, the outputs always are high. The AM26LS32 is incorporates an additional stage of amplification to improve sensitivity. The input impedance has been increased, resulting in less loading of the bus line. The additional stage has increased propagation delay, however, this does not affect interchangeability in most applications.

Meets/exceeds requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B & ITU recommendation V.10/V.11
50mV Typical input hysteresis
Low-power Schottky circuitry
3 State outputs
Complementary output-enable inputs
12kR Minimum input impedance

工业

器件类型	差分接收
芯片接口类型	RS422, RS423
接收器数	4Receivers
电源电压最小值	4.75V
电源电压最大值	5.25V
驱动器封装类型	DIP
针脚数	16引脚
工作温度最小值	0°C
工作温度最高值	70°C
封装	每个
产品范围	-
汽车质量标准	-
MSL	-
