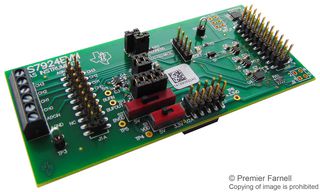

The ADS7924EVM is an evaluation board for the ADS7924, a four channel, 12bit, analog to digital converter (ADC) with an I2C interface. The modular evaluation board uses the ADS7924 and minimal circuitry to demonstrate functionality for prototyping and part evaluation. The pins of the ADS7924 are accessible through various connections on the ADS7924EVM connectors. The MMB3 motherboard allows the ADS7924EVM to be connected to the computer via an available USB port. ADCPro is a program for collecting, recording, and analyzing data from ADC evaluation boards. It is based on a number of plug-in programs, so it can be expanded easily with new test and data collection plug-ins.
- Contains all support circuitry needed for the ADS7924
- Buffer options On board analog input buffer can be bypassed
- Compatible with the modular EVM system
- Compatible with the modular EVM system
