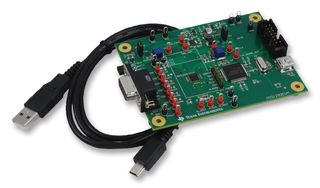

The ADS1293EVM is a demonstration kit for the ADS1293, a three channel, 24bit delta sigma (ΔΣ) analog to digital converter (ADC), internal reference, and an on board oscillator. The ADS1293 chip incorporates all of the features that are commonly required in medical electrocardiogram (EKG/ECG)applications. The EVM is equipped with a MSP430F5529 microcontroller giving the user all the circuitry needed to run the ADC. The board can be used with a variety of patient simulators and allows the user to take advantage of the flexible input multiplexer which can be independently connected to the internally generated signals for test and lead off detection.
- Easy to use online and offline WEBENCH medical AFE designer tool
- Clickable block diagram in tool
- Pre programmed three lead and five lead ECG application
- Easy to use evaluation software for Microsoft Windows XP or Windows 7
- Built in analysis tools including oscilloscope and histogram displays
- Real time data streaming from the demo board to the PC
- Ability to export data in simple test files for post processing
