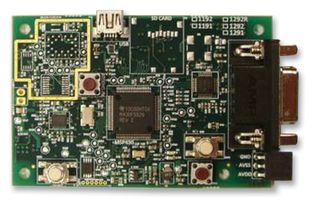

The ADS1292RECG-FE is a demonstration kit for the ADS1292R, a two channel, simultaneous sampling, 24bit, delta sigma (ΔΣ) analog to digital converter (ADC) with a built in programmable gain amplifier (PGA), internal reference, and respiration measurement. The ADS1292R chip incorporates all of the features that are commonly required in medical electrocardiogram (EKG/ECG) and electroencephalogram (EEG) and respiratory monitoring applications. The demonstration kit is equipped with a MSP430F5529 microcontroller giving the user all the circuitry needed to run the ADC. The board can be used with a variety of patient simulators and allows the user to take advantage of the flexible input multiplexer which can be independently connected to the internally generated signals for test, temperature, and lead off detection. Software is available from Texas Instruments to allow the evaluation platform to run with a PC user interface.
- Easy to use evaluation software for Microsoft Windows XP or Windows 7
- Built in analysis tools including oscilloscope, FFT, and histogram displays
- Flexible input configurations
- Integrated respiration impedance
- Digital low pass, high pass, and 50Hz/60Hz notch filters for post processing
- Real time data streaming from the demo board to the PC
- Ability to export data in simple test files for post processing
