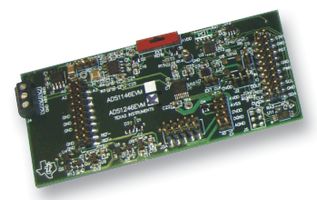

The ADS1146EVM is an evaluation board for the ADS1146, a 16bit, multi channel, delta sigma analog to digital converter (ADC). The modular evaluation module uses the ADS1146 and minimal circuitry to demonstrate functionality for prototyping and part evaluation. The pins of the ADS1146 are accessible through various connections on the ADS1146EVM connectors. The evaluation module can be plugged into suitable motherboards such as the ADS1146EVM-PDK to work directly with any personal computer. ADCPro is a program for collecting, recording, and analyzing data from ADC evaluation boards. It is based on a number of plug in programs, so it can be expanded easily with new test and data collection plug-ins.The ADS1146EVM-PDK/ADS1246EVM-PDK is controlled by a plug in running in ADCPro.
- Contains all support circuitry needed for the ADS1146/ADS1246
- ±2.5V and +5V power supply options for ADC
- Voltage reference options external or On board
- Compatible with the modular EVM system
