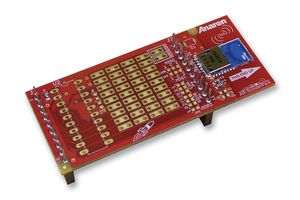

The 430BOOST-CC110L is a low power wireless transceiver extension kit for use with MSP-EXP430G2 LaunchPad development kit. Based on the CC110L device, the on board Anaren Integrated Radio (AIR) A110LR09A radio module with integrated antenna operates in the European 868MHz to 870MHz and US 902MHz to 928MHz ISM bands. The included software application, called AIR BoosterStack, demonstrates an example sensor network as well as network status reporting.
- 1.8V to 3.6V operation
- Low power consumption
- SPI interface between RF module and MSP430
- Prototyping area
- Footprints for adding a microcontroller, pushbutton switch, and LED for standalone operation
- low power temperature sensor application
- Star network topology with one hub node and up to four sensor nodes
- Ability to change radio settings locally and/or remotely
- Remote control feature to turn on/off LaunchPad green LED
- Node ID, operating state, and radio settings restored at power up
无线, 安全, 工业, 建筑自动化, 业余爱好与教育用, 系统监控
