TCP2020 -

电流探头, BNC插头, 电流夹, 20 A, 10 mA, Tektronix TDS Series Oscilloscopes

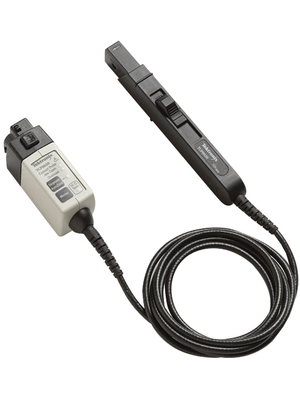

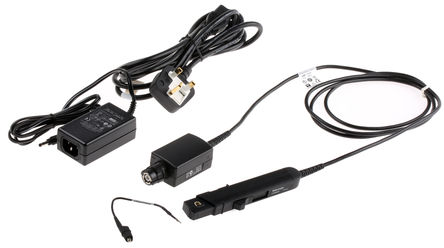

TEKTRONIX TCP2020
声明:图片仅供参考,请以实物为准!
制造商产品编号:
TCP2020
仓库库存编号:
2318653
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!


数据正在加载中...

TCP2020产品概述

The TCP2020 is a high-performance easy-to-use AC/DC Current Probe designed for use with a variety of oscilloscopes. The TCP2020 is designed for use with any instrument with BNC inputs and >100kR input termination. This AC/DC current probe provides sufficient performance to support 50MHz measurement system bandwidth. The TCP2020 provides a maximum 20ARMS measurement range. It probes also provide excellent accuracy to current levels as low as 10mA, important for meeting today's challenging current measurement needs.
  • Easy to use and accurate AC/DC current measurements
  • DC to >50MHz Bandwidth
  • Core jaw diameter of 5mm (0.2")
  • Accurately measures current levels as low as 10mA per division
  • High accuracy with typically less than 1% DC gain error
  • Split-core construction allows easy circuit connection
  • Low noise and DC drift
  • 20ARMS Maximum current capability
  • 100A Peak pulse current capability
  • 10mA/mV Sensitivity
  • BNC output connects to most oscilloscopes/other measurement equipment (>100kR termination required)
  • Degauss button and thumbwheel for DC offset adjustment
  • Powered by an AC adapter

电源管理, 工业, 消费电子产品, 通信与网络, 电机驱动与控制, 车用, 航空电子

TCP2020产品信息

  仪表侧连接器  BNC插头
  探头侧连接器  电流夹
  电流范围最大值  20A
  电流范围最小值  10mA
  用于  Tektronix TDS Series Oscilloscopes
  产品范围  -
关键词

TCP2020替代选择

  • 制造商产品编号
  • 仓库库存编号
  • 制造商 / 说明 / 规格书
  • 操作
参考价格及参考库存
电话:400-900-3095
QQ:800152669

TCP2020产地与重量

原产地:
China

进行最后一道重要生产流程所在的国家

税则号:
90303100
重量(千克):
1.60753
