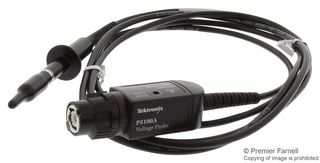

The P5100A from Tektronix is a 500MHz passive high voltage probe. It is a safe high voltage probe solutions for ground referenced voltage testing. The P5100A low input capacitance probe is designed for higher frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7pF to 30pF. A variety of screw on accessories provides easy connection to device under test.
DC to 500MHz bandwidth
100X attenuation
Nominal length of 2m
100X attenuation
Rise time is typically less than 700ps
Maximum input voltage (DC or RMS) of 2.5KV peak and 1000Vrms (CAT II)
