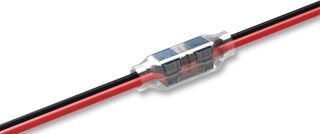

The 293545-2 is a sealed clear CoolSplice Connector with tin-plated copper alloy insulation displacement contacts. This CoolSplice connector is designed to connect a pair of discrete wires or a twin cord cable in line to a pair of discrete wires or twin cord cables. The insulation displacement, free hanging connectors accepts 18AWG stranded wire in sealed, colour coded configurations. The CoolSplice connector eliminates the need to pre-strip the insulation from the wire conductors and provides a visual controlled termination. The push connect buttons provide a more ergonomic wire termination than conventional twist-on-wire connectors/nuts (Marrettes). The slim, symmetrical contoured, snag resistant connectors fit through a 16mm (0.630-inch) diameter hole or PVC tube.
Simple push button termination
Reliable and proven insulation displacement technology
