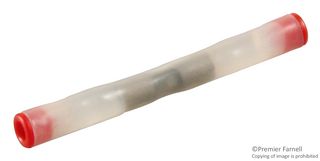

The D-436-36-COLD is a Butt Splice Terminal made of copper with tin plated finish. The Raychem? CN1020-000 cold applied splice comes with a clear color heat shrink radiation-cross-linked polyvinylidene fluoride insulated sleeve barrel, red thermoplastic end caps and clear color flame-retardant silicone based gel. The cold applied splice product line is designed as a single component in-line splice to provide high environmental protection to seal the termination from moisture and provide electrical isolation. If moisture is present, it can lead to insulation failure and breakdown of the electrical connection. In this product, sealing is achieved by gel technology. The electrical isolation is provided by a polymer outer layer. It is designed to provide an immersion resistant in-line splice on 1:1 wires. Protects and seals on all conventional MIL spec and commercial wire insulation systems. It accepts 26 to 20AWG wire.
One-step termination and environmental protection
No heating required for Installation - Safe for use on fueled aircraft
Reliable in a wide variety of environmental conditions
Easy installation and application flexibility
Prevents water ingress under permanent pressure/weight
