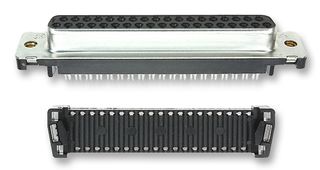

The 1658610-1 is a 37-way 2-row D-sub Receptacle for flat ribbon cable with gold-plated phosphor bronze contacts. The Amplimite HDF-20 series receptacle comes with black thermoplastic housing, bright tin-plated steel shell, 4-40 UNC brass threaded inserts and tin-plated solder tail. It accepts 28/26AWG solid and stranded round conductor flat ribbon cable on 0.050-inch centers.
Visual inspection of termination possible
Wide range of application tooling
Patented insulation displacement contact latches into the connector cover
