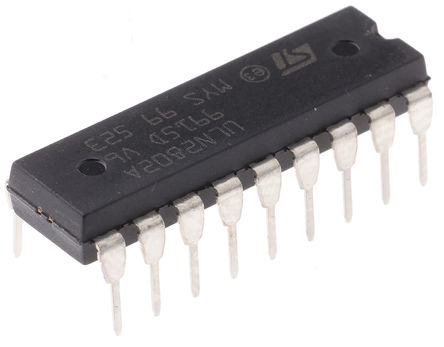

The ULN2802A from STMicroelectronics is a through hole eight darlington array in DIP package. Array contains eight darlington transistors with common emitters and integral suppression diodes for inductive loads. Each darlington features a peak load current rating of 600mA (500mA continuous) and can withstand at least 50V in the OFF state. ULN2802A has a 10.5Kohm input resistor and zener for 14V to 25V PMOS to simplify logic families interfacing.
Inputs pinned opposite to outputs to simplify board layout
Outputs may be paralleled for higher current capability
Integral suppression diodes
Output voltage of 50V
DC current gain (hFE) of 1000
Operating ambient temperature range from -20°C to 85°C
(EN)
