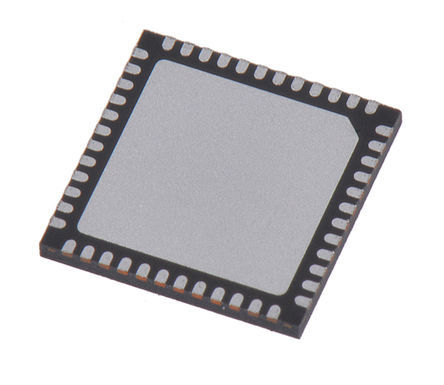

The STM32F411CEU6 is a Microcontroller Unit, based on the high-performance ARM? Cortex? -M4 32-bit RISC core operating at a frequency of up to 100MHz. Its Cortex?-M4 core features a floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It incorporate high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB bus and a 32-bit multi-AHB bus matrix.
Dynamic efficiency line with BAM (Batch Acquisition Mode)
Up to 512kB flash memory
128kB SRAM
Clock, reset and supply management
1.7 to 3.6V Application supply and I/Os
4 to 26MHz Crystal oscillator
32kHz Oscillator for RTC with calibration
Internal 32kHz RC with calibration
Power consumption
1x12-bit, 2.4 MSPS A/D converter up to 16 channels
16 Stream DMA controllers with FIFOs and burst support
