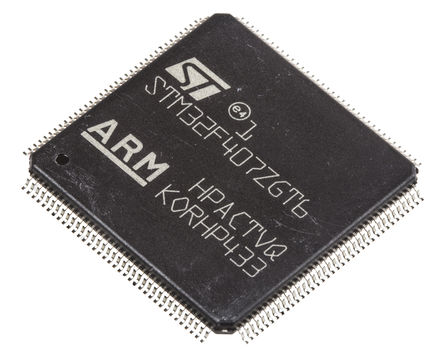

The STM32F407ZGT6 is a Microcontroller Unit, based on the high-performance ARM? Cortex?-M4 32-bit RISC core operating at a frequency of up to 168MHz. The Cortex-M4 core features a floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.
CRC calculation unit
Up to 1MB flash memory
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
1.8 to 3.6V Application supply and I/Os
4 to 26MHz Crystal oscillator
Internal 16MHz factory-trimmed RC
32kHz Oscillator for RTC with calibration
Low-power operation
2x12-bit D/A Converters
Serial wire debug (SWD) and JTAG interfaces
Up to 140 I/O ports with interrupt capability
Up to 15 communication interfaces
Advanced connectivity
8 to 14-bit Parallel camera interface up to 54Mbytes/s
