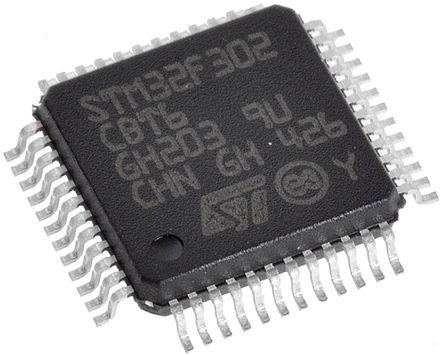

The STM32F302CBT6 is a 32-bit ARM? Cortex? -M4 Microcontroller Unit offers digital signal processing (DSP) and floating point unit (FPU). The microcontroller unit offers up to two fast 12-bit ADCs, four comparators and two operational amplifiers, one DAC channel, a low-power RTC and up to five general-purpose 16-bit timers, one general-purpose 32-bit timer. It also features standard and advanced communication interfaces up to two I2Cs, up to three SPIs, three USARTs, up to two UARTs, CAN and USB. To achieve audio class accuracy the I2S peripherals can be clocked via an external PLL. It incorporates high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
- Reset and power management - Power-ON/power DOWN reset (POR/PDR)
- Programmable voltage detector
- Low-power - Sleep, stop and standby
- VBAT supply for RTC and backup registers
- Interconnect matrix
- Calendar RTC with alarm, periodic wakeup from stop/standby
- Serial wire debug, Cortex?-M4 with FPU ETM, JTAG
- 96-bit Unique ID
