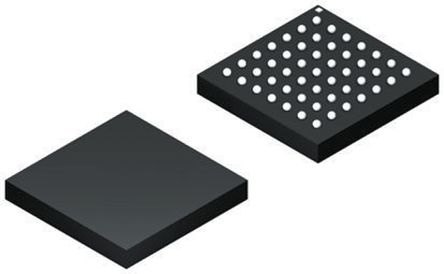

The STM32F205RGY6TR is a High-performance ARM Cortex-M3 MCU with adaptive real-time memory accelerator (ART Accelerator?) which allows to achieve a performance equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 120MHz. This performance has been validated using the CoreMark benchmark. Device offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. A true number random generator (RNG). They also feature standard and advanced communication interfaces.
8- to 14-bit parallel camera interface (48MBps maximum)
CRC calculation unit
96-bit unique ID
Up to 15 communication interfaces - SDIO interface
Up to 140 I/O ports with interrupt capability - Up to 136 fast I/Os up to 60MHz
2 x 12-bit D/A converters
Clock, reset and supply management - From 1.8 to 3.6V application supply + I/Os
