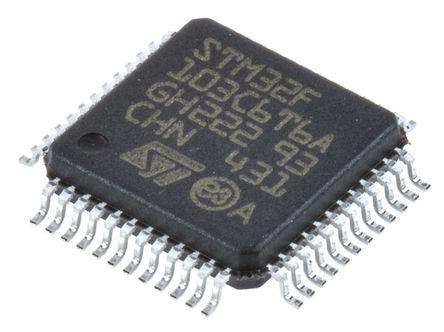

The STM32F103C6T6A is a 32-bit performance line Microcontroller Unit incorporates the high-performance ARM? Cortex?-M3 RISC core operating at a 72MHz frequency, high-speed embedded memories (flash memory of 32kB and SRAM up to 6kB) and an extensive range of enhanced I/Os and peripherals connected to two APB buses. This device offers two 12-bit ADC and 3 general purpose 16-bit timers plus one PMW, as well as standard and advanced communication interfaces up to two I2Cs and SPIs, three USARTs, an USB and a CAN.
- POR, PDR and programmable voltage detector
- PLL for CPU clock
- Low power - Sleep, stop and standby modes
- VBAT supply for RTC and backup registers
- Dual-sample and hold capability
- Debug mode - Serial wire debug (SWD) and JTAG interfaces
- 2 Watchdog timers
- SysTick timer - 24-bit down counter
- CRC calculation unit, 96-bit unique ID
电机驱动与控制, 便携式器材, 医用, 消费电子产品, 计算机和计算机周边, 通信与网络, 工业, 安全, 成像, 视频和目视, HVAC
