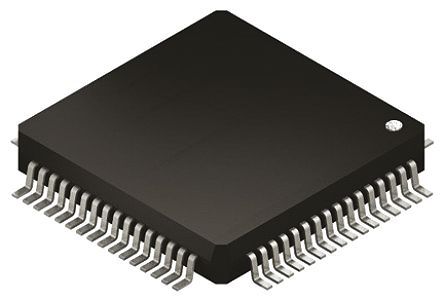

The STM32F100RCT6 is a high density access line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 24MHz frequency, high speed embedded memories (Flash memory up to 256kB and SRAM up to 24KB) and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer one 12-bit ADCs, two 12-bit DACs, up to nine general purpose 16-bit timers and an advanced-control PWM timer, as well as standard communication interfaces - up to two I2Cs, three SPIs, one HDMI CEC, three USARTs and two UARTs.
- 24MHz Maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
- Single cycle multiplication and hardware division
- Flexible static memory controller with 4 chip selects, supports SRAM, PSRAM and NOR memories
- LCD parallel interface, 8080/6800 modes
- Clock, reset and supply management
- POR, PDR and programmable voltage detector (PVD)
- 4 to 24MHz Crystal oscillator
- Internal 8MHz factory trimmed RC
- Internal 40kHz RC
- PLL for CPU clock
- 32kHz Oscillator for RTC with calibration
- Sleep, stop and standby modes
- VBAT supply for RTC and backup registers
- Serial wire debug (SWD) and JTAG interfaces
- 12-channel DMA Controller
- Two watchdog timers (Independent and window)
- SysTick Timer
- 96-bit Unique ID
电机驱动与控制, 自动化与过程控制, 医用, 消费电子产品, 计算机和计算机周边, 工业, 成像, 视频和目视, 安全, HVAC, 电源管理
