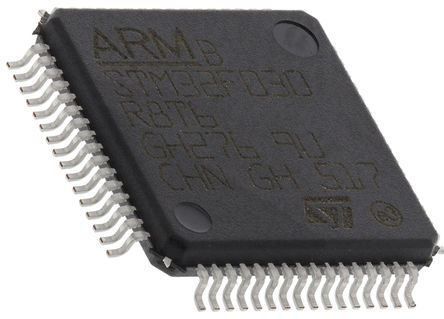

The STM32F030R8T6 is a general purpose ARM Cortex-M0 32bit microcontroller in 64 pin LQFP package. This microcontroller incorporates high performance RISC core with 48MHz operating frequency, high speed embedded memories, extensive range of enhanced peripherals and I/Os. The STM32F030R8T6 features standard communication interfaces, ADC, general purpose 16bit timers and advanced control PWM timer. A comprehensive set of power saving modes allows design of low power applications.
- Operating voltage range from 2.4V to 3.6V
- 64Kbytes of flash memory
- 8Kbytes of SRAM with HW parity
- CRC calculation unit
- 55 fast I/O ports
- 5 channel DMA controller
- Calendar RTC with alarm and periodic wakeup from stop/standby
- One 12bit, 1.0μs ADC (up to 18 channels)
- Ambient operating temperature range from -40°C to 85°C
- Features two I2C, two SPI and two USART interface
