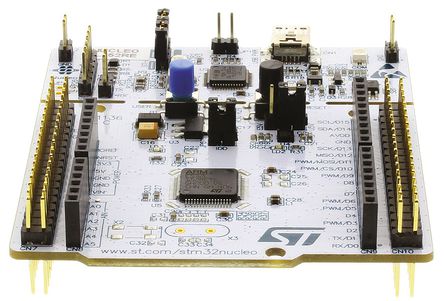

The NUCLEO-L152RE is a STM32 Nucleo development board with STM32L152RET6 MCU allows user to build their own prototypes for embedded applications. The Arduino connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo board series are based on ARM Cortex-M 32-bit RISC cores optimised for high performance and energy efficiency. ARM Cortex-M features a high density instruction set and a Nested Vectored Interrupt Controller (NVIC) providing excellent interrupt handling abilities.
Onboard STM32L152RET6 microcontroller
Arduino Uno Revision 3 connectivity and STMicroelectronics Morpho extension resources supported
Onboard ST-LINK/V2-1 debugger/programmer with SWD connector
USB VBUS or external source power supplies (3.3V, 5V, 7-12V), Power management access point
Three LED indications for USB communication, user LED, power LED
Two push buttons for user and reset
Three interfaces supported on USB. Virtual Com port, Mass storage and Debug port
STM32 comprehensive software HAL library
Supported by Integrated Development Environments (IDEs) including IAR, Keil, GCC based IDEs
