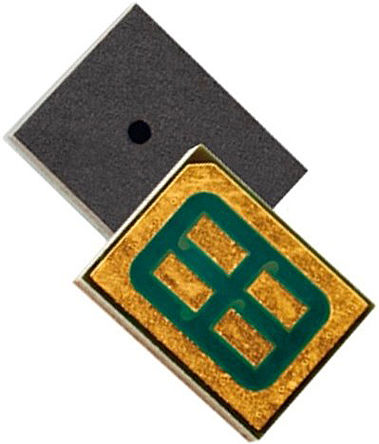

The MP34DT01TR-M is a MEMS audio sensor omnidirectional Digital Microphone built with a capacitive sensing element and an IC interface. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to produce audio sensors. The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format. The MP34DT01-M has an acoustic overload point of 120dBSPL with a 61dB signal-to-noise ratio and -26dBFS sensitivity.
- Single supply voltage
- Low power consumption
- Omnidirectional sensitivity
- PDM Output
消费电子产品, 便携式器材, 通信与网络, 计算机和计算机周边
