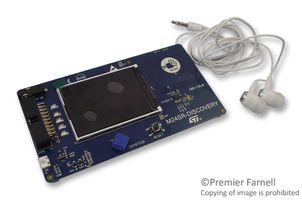

The M24SR-DISCO-PREM is a Demonstration Kit to evaluate the features and capabilities of the M24SR series and is based on the M24SR64 device. The M24SR64 device is a dynamic NFC/RFID tag IC with a dual interface. It embeds a 64 Kbits EEPROM memory. It can be operated from an I2C interface or by a 13.56MHz RFID reader or an NFC phone. The I2C interface uses a two-wire serial interface, consisting of a bidirectional data line and a clock line. It behaves as a slave with respect to the I2C protocol. The RF protocol is compatible with ISO/IEC 14443 Type A and NFC Forum Type 4 Tag. The board is powered through the USB bus. It also includes a microcontroller STM32F103 to drive the EEPROM via I2C and the LCD screen via SPI bus.
31 x 30mm 13.56MHz double layer inductive antenna etched on PCB (ANT14)
STM32F103RGT6 64LQFP 32-bit microcontroller with 1MB flash memory
USB micro-B connector for board powering
JTAG connector for microcontroller firmware upgrade and debug
Bluetooth module with audio outputs connected to 3.5mm jack
