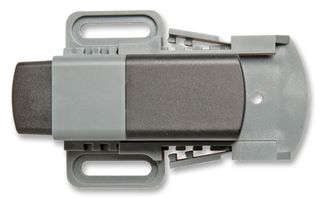

The 01350.0-00 is a single-pole double-throw (SPDT) Safety Interlock Switch monitors the position of cabinet doors. The version with change-over contact (CO) can be used as a normally closed and/or normally open contact. The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas. The housing is adjustable within a 35mm range, while the screw flange with a slotted hole offers an additional 21mm. The switching travel of the switch itself is another 8mm.
Adjustable positioning without tools
High switching capacity
Double strain relief
Different cladding diameters
Suitable for lamp LED 025
>10000 cycles (VDE) and >6000 cycles (UL) Service life
