SLSTK3400A -

制造商：

SILICON LABS SILICON LABS

制造商产品编号：

SLSTK3400A

仓库库存编号：

2472277

技术数据表：

(EN)

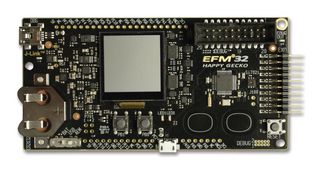

The SLSTK3400A is an EFM32? Low Energy USB Interface Happy Gecko Starter Kit, provides an excellent tool to get familiar with the EFM32? USB-enabled Happy Gecko 32-bit microcontrollers (MCUs), the industry's most energy-friendly MCU based on the ARM? Cortex?-M0+ processor. Supported by Simplicity Studio, the starter kit contains sensors and peripherals, touch-buttons, LEDs, Si7021 Digital Relative Humidity and Temperature Sensor, memory LCD and simplicity header, demonstrating some of the MCU's many capabilities and can serve as a starting point for application development. The SLSTK3400A includes AEM (Advanced Energy Monitoring) and the Energy Profiler capabilities allowing real-time energy profiling of your application. This kit has two AEM-channels, one for measuring the current consumption in self-powered mode and one for monitoring the VBUS-current when the chip is USB-powered.

• EFM32HG322F64 with 64kB flash and 8kB RAM
• Advanced Energy Monitoring system for precise current tracking
• Real-time energy and power profiling
• Integrated SEGGER J-Link USB debugger/emulator with debug out functionality
• Can be used as stand-alone debugger/emulator
• 128 x 128 Pixel memory LCD
• 20 pin expansion header
• Breakout pads for easy access to I/O pins
• Power sources (USB and CR2032 battery)
• 2 User buttons, 2 user LEDs and 2 touch buttons

• Silicon Labs Si7021 relative humidity/temperature sensor
• USB device interface
