SI7053-A20-IM -

制造商：

SILICON LABS SILICON LABS

制造商产品编号：

SI7053-A20-IM

仓库库存编号：

2473655

技术数据表：

(EN)

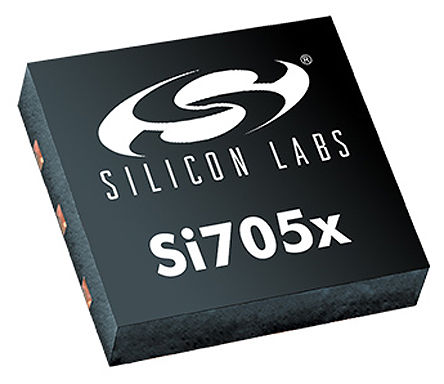

The SI7053-A20-IM is a Digital Temperature Sensor that offers industry-leading low power consumption and high accuracy across the entire operating voltage and temperature range. These monolithic CMOS ICs feature a band-gap temperature sensor element, an analogue-to-digital converter with up to 14- bit resolution, signal processing, calibration data and an I2C interface. The patented use of novel signal processing and analogue design enables the sensors to maintain their accuracy over a wide temperature and voltage range, while consuming very little current. The temperature sensors are factory-calibrated and the calibration data is stored in the on-chip non-volatile memory. This ensures that the sensors are fully interchangeable, with no recalibration or software changes required.

• Accuracy maintained over the entire operating temperature and voltage range
• Low power consumption - 195nA Average current at 1Hz sample rate

参考价格及参考库存
