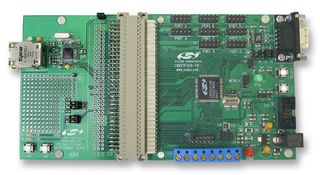

ETHERNETDK embedded ethernet development kit provides hardware and software to develop real world embedded ethernet applications using CP2200 ethernet controller and C8051F120 high performance microcontroller. The C8051F120 target board includes 8051 based C8051F120 MCU which combines a high throughput 100MIPS core with 128KB flash and 8KB RAM. The MCU is connected to an ethernet network using the AB4 ethernet development board, which consists of the CP2200 ethernet controller and an RJ45 connector with integrated magnetics and LEDs.
- IEEE 802.3 MAC and 10base-T PHY
- Fully compatible with 100/1000 base-T
- Full/Half duplex with auto negotiation
- Automatic polarity detection and correction
- Hardware diagnostic software
- 12bit ADC, two 12bit DAC
- On chip JTAG debug and boundary scan
- High speed 8051 uC core
