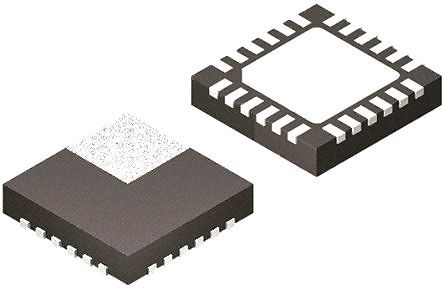

C8051F975-A-GM -

制造商：

SILICON LABS SILICON LABS

制造商产品编号：

C8051F975-A-GM

仓库库存编号：

2433476

技术数据表：

(EN)

The C8051F975-A-GM is an ultra-low power capacitive sensing 8-bit Microcontroller featuring a powerful 8051 core with 25MHz performance. This MCU provides the lowest power and highest sensitivity touch sensing solution for capacitive buttons, sliders, wheels and capacitive proximity sensing. With capacitive sensing inputs and sub micro amp (<1uA) wake on touch average current consumption, the C8051F975-A-GM achieves unparalleled touch sensitivity, speed and ultra-low power. With on-chip power-on reset, VDD monitor, watchdog timer and clock oscillator, the device is truly stand-alone system-on-a-chip solutions. The flash memory can be reprogrammed even in-circuit, providing non-volatile data storage and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals and may individually shut down any or all peripherals for power savings.

• High-speed CIP-51 μC core
• Efficient, pipelined instruction architecture
• Up to 25MIPS throughput with 25MHz clock
• Uses standard 8051 instruction set
• Expanded interrupt handler
• 1-cycle 16 x 16 MAC Engine
• 7-channel Direct Memory Access (DMA) module
• Low power consumption
• Capacitance sense interface
• Internal oscillators - 24.5MHz, ±2% accuracy supports UART operation

• External oscillator - Crystal, RC, C or CMOS clock
• SmaRTClock oscillator - 32kHz crystal or internal LFO
• Can switch between clock sources on-the-fly; useful in implementing various power-saving modes
• On-chip debug circuitry facilitates full speed, non-intrusive insystem debug
• Provides breakpoints, single stepping, inspect/modify memory and registers
• 128-bit Unique key for each device
• 4 General-purpose 16-bit timer/counters
• 16-bit Programmable counter array (PCA)
• Built-in LDO regulator allows a high analog supply voltage and low digital core voltage
• 2 Supply monitors (brownout detector) for sleep and active modes
