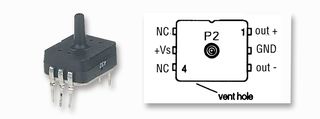

The SDX series sensors provide a very cost effective solution for pressure applications that require small size plus performance. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. Devices are available to measure absolute and gage pressures from 1 psi up to 100 psi. The absolute devices have an internal vacuum reference and an output voltage proportional to absolute pressure. The SDX devices are available in standard commercial and prime grades to allow optimization of accuracy. The SDX devices feature an integrated circuit (IC) sensor element and laser trimmed thick film ceramic housed in a compact solvent resistant case.
- Precision temperature compensation
- Calibrated zero and span
- Low noise
- High Impedance for low power applications
传感与仪器, 医用, HVAC, 计算机和计算机周边, 工业
