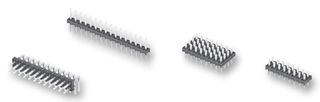

The TMM series from Samtec are low profile terminal strip headers. These are unshrouded surface mount headers with 0.020" (0.50mm) square post and mates with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, MMS and TCSD series of connectors. The low profile design provides flexibility in all three axes up to four rows wide and 200 pins. Surface mount terminal strip headers are available in large variety of terminal lengths and options.
Orderable with single/dual rows (-S/-D option)
Pitch spacing is 2mm (2 to 40 contacts per row)??????????????????
High operating temperature range of -55°C to 105°C for matte tin plated contacts
Contact material is phosphor bronze
Black liquid crystal polymer insulator material
Current rating is 3.2A
Complies with UL E111594 and CSA 090871_0_000 standards
