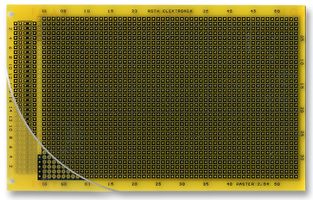

The RE201-LFDS is a PCB Eurocard with epoxy glass composite board. It features double-sided 35μm Cu, non-plated through holes and hot air levelling. 34 x 54 soldering pads 2 x 2mm. 32/64/96-channel DIN 41612 type C connector. The component side is totally laminated by copper. No conducting connection to the component side by etched-free holes. If the copper coating is grounded, the electrical components are optimally shielded against the solder side.
