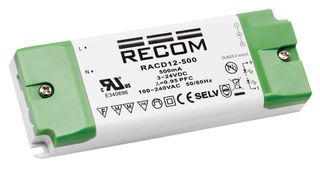

The RACD12-500 is a 24V/12W AC to DC Converter, compact 12W constant current switching power module suitable for driving up to ten high power LEDs. Plastic resin with fibreglass PCB and plastic case, the output current is fixed, active power factor correction is standard and the converters are UL8750 certified for use with LED assemblies. The driver modules features both screw terminal and socket output connections. The socket connecter avoids the possibility of miswiring and damaging the LED load if the LEDs are preassembled into a wiring harness or lamp fitting.
UL94V-0 Flammability rating
-20 to 50°C Operating temperature range
IP20 Protection rating
Zener diode clamp output Overvoltage protection
Shutdown, automatic restart after cooling down over-temperature protection
