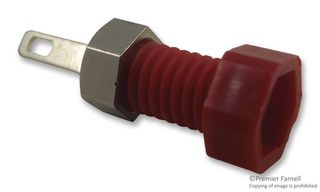

The R921931000 is a 2mm red insulated Banana Plug with nickel-plated brass contact, stamped panel-mount socket, tin-plated solder termination, 4mm strip length. It accepts 20AWG cable. Robust contact point pressure when connected, high durability for high number of mating cycles.
Excellent electrical conduction
Very low contact resistance
Strip length of 4mm
Suitable for 20AWG wire
Maximum current rating is 10A at 20°C
Operating voltage is 250Vrms at 50Hz
Dielectric withstanding voltage is 1500Vrms at 50Hz
