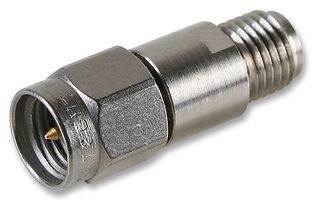

The R413820000. is a 18GHz 20dB SMA Attenuator with gold over nickel plated beryllium copper center contacts and stainless steel body. This attenuator has PTFE insulation, cable mounting, thin film resistor, sub miniature coaxial connectors, screw-on coupling and high RF performance.
- Wide hermetically sealed range
- Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards
- 50R Nominal impedance
- 100W Peak power
- 2W Average power
