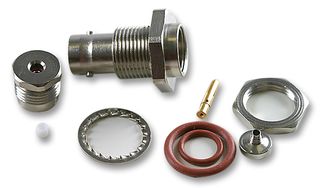

The R141324000 is a straight Bulkhead BNC Jack, panel sealed, rear mount clamp type, with gold over nickel plated beryllium copper center contact, nickel-plated brass body, for 2.6/50+75 cable. This BNC series plug has PTFE insulation, panel mounting and solder termination. The BNC connector is the most popular coaxial connector series in the world, featuring a two-pin bayonet coupling system for quick and reliable engagement and disengagement.
- Worldwide standardised coaxial connector
- Bayonet coupling
- Proven strength and reliability
- Good RF performance
- Meets MIL-C-39012/MIL STD 348-A/301, IEC 169-8, CECC 22120 and UTE-C-93564 standards
- -65 to 165°C Temperature rating
国防, 军用与航空, 射频通信, 测试与测量, 通信与网络, 工业, 消费电子产品
