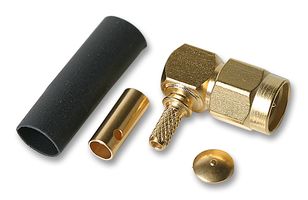

The R125172000 is a right angle SMA Plug with gold over nickel plated brass center contact, gold over nickel plated stainless steel body, for 2.6/50 S cable. This SMA series plug has PTFE insulation, cable mounting and solder termination. The stainless steel SMA connector has been designed for applications where reliability, durability, robustness and high frequency are very important. Radiall offers an extended frequency SMA range allowing coaxial system operation up to 27GHz. This series mates with the standard SMA series and maintains the same mechanical characteristics (part numbers ending with 700, 701 or 702).
Subminiature coaxial connector
Screw-on coupling
High RF performance
Wide hermetically sealed range
Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards
