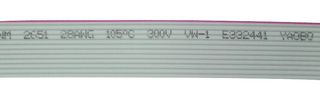

The R2651DTSY16SC85 from Pro Power is a 28AWG, 1.27mm pitch, 30.5m grey colour ribbon cable with 16 cores. This PVC insulated hook-up wire is approved by UL758, UL1581 and C22.2 standards. It is typically used for internal wiring of appliances and electronic equipments.
CPR: Not Yet Qualified
Tinned copper conductor
Conductor diameter is 0.381mm
Minimum insulation resistance of 100Mohm/KM at 20°C
Minimum insulation thickness of 0.23mm and average insulation thickness of 0.26mm
Insulation pitch of 1.27 ±0.15mm and diameter of 0.9 ±0.1mm
Rated voltage of 300V, withstand voltage of 2500V/1minute and rated temperature of 105°C
