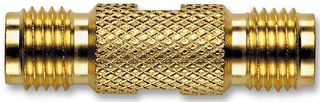

The 72966 is a SMA jack to SMA jack Straight Adapter, high bandwidth, small size and durability for confident connections. Precision machined and gold-plated for low loss. Gold plated brass centre contact for plug and gold plated beryllium copper centre contact for jack. The straight adapter comes with a PTFE insulator and silicone rubber gasket.
50R Impedance
DC to 18GHz Frequency range
5000MR Insulation resistance
500 Insertions
1000V Dielectric withstanding voltage
Meets MIL-C-39012, IEC 169-15 and CECC 22110 standards
