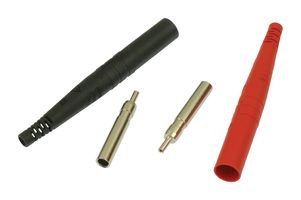

The 6384-02 is an in-line user installed Banana Jack with nickel-plated brass contact. It can be used on stranded wire from 18 to 22AWG with an insulation diameter from 0.060 to 0.150-inch. The 6384 jack fits shrouded banana plugs and most other shrouded banana plugs, will also fit most banana plugs without shrouds. The jack comes with Santoprene? (thermoplastic elastomer) red insulation, provides safe and secure connections to 4mm shrouded banana plugs.
Attaches to wire with commonly available crimp tools or by soldering
Will comply with IEC1010 CAT II, 300V when properly assembled
